AERATRON AE3+
Download Files
Aeratron_Catalog_R2.2_(A4).pdf (1.7 MB)
Aeratron_WIFI_Module_Installation_Guide.mp4 (23.59 MB)
WIFI_Setup_Guide.pdf (847.47 KB)
Aeratron_Catalog_R2.2_(A4).pdf (1.7 MB) Aeratron_AE3+_Catalogue.jpg (1.41 MB) Single_Image_AE3+50_WH.jpg (859.43 KB) Single_Image_AE3+50_BK.jpg (0.97 MB) Single_Image_AE3+50_LW.jpg (1.35 MB) Single_Image_AE3+50_DW.jpg (1.27 MB) Singe_Image_AE3+50_WH+LW.jpg (1.12 MB) Aeratron_WIFI_Module_Installation_Guide.mp4 (23.59 MB) WIFI_Setup_Guide.pdf (847.47 KB) AE3+_60_BK.jpg (0.95 MB) SinleImage_AE3+60_WH+LW.jpg (1.32 MB) AE3+_60_BK.jpg (0.95 MB) AE3+_60_(BK-DARKWOODGRAIN).jpg (1.22 MB)Designed like the AE2+ but with an extra blade and great. This unique 3-blade fan is our best seller and an international multi-award winner for design and efficiency. Rated MOST EFFICIENT 2013-2019 by Energy Star, the AE3+ furnishes quiet, smooth, and even airflow for a perfect living environment, all year round!
KEY FEATURES
- World's most energy-efficient small/ medium fan
- Unique 3 blade design
- WIFI ready
- Not suitable for outdoor
COLOUR OPTIONS
- BK/Light Woodgrain

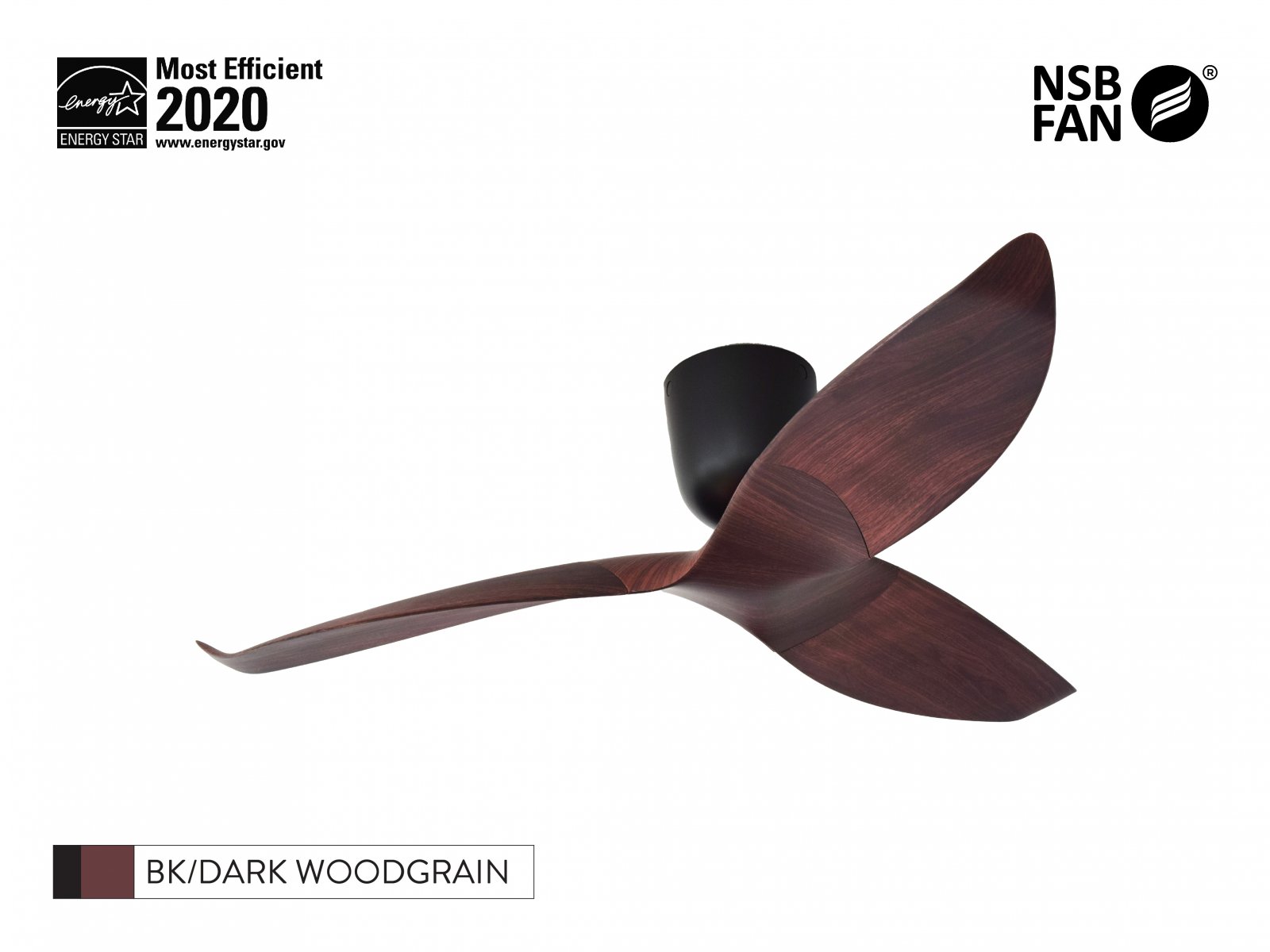

- BK/Dark Woodgrain
- White/ Light Woodgrain

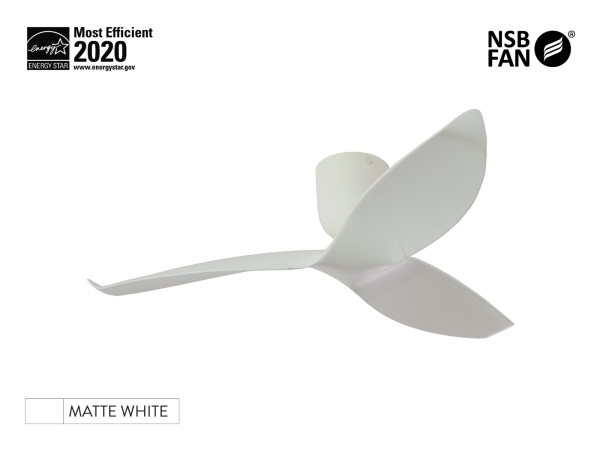

- Matte White

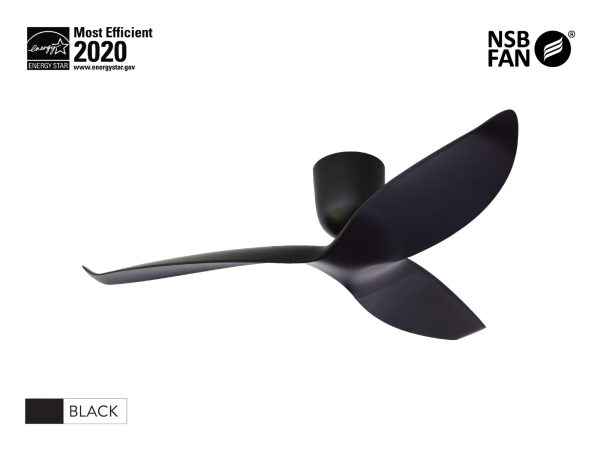

- Matte Black
SPECIFICATION
| Diameter | 43'' / 1092mm | 50'' / 1260mm | 60'' / 1524mm |
| Height | 10.8'' / 275mm | 10.8'' / 275mm | 10.8'' / 275mm |
| Motor | DC Motor | DC Motor | DC Motor |
| Number of Airfoil(s) | 3 | 3 | 3 |
| Airfoils Material | ABS | ABS | ABS |
| RPM at Max | 187 RPM | 165 RPM | 140 RPM |
| CFM at Max | 6086CFM | 7052CFM | 9099FM |
| Energy Consumption | 3W Min/ 20W Max | 3W Min/ 19W Max | 3W Min/ 22W Max |
| Light Kit | N/A | N/A | N/A |
| Remote Control | FR/RV 6 Speeds | FR/RV 6 Speeds | FR/RV 6 Speeds |
| Timer | N/A | N/A | N/A |
| WIFI | Optional Wifi Modulee (Sold separately) | Optional Wifi Modulee (Sold separately) | Optional Wifi Modulee (Sold separately) |
| Voltage | 220-240V ~ 50Hz | 220-240V ~ 50Hz | 220-240V ~ 50Hz |
| Mounting System | Bracket | Bracket | Bracket |
| Net Weight | 5.5KGs | 5.7KGs | 6.5KGs |
