MAX
Download Files
MAX_Catalogue.jpg (459.69 KB) Single_Image_Max42_st-wh.jpg (794.51 KB) Single_Image_Max42_gm-bk.jpg (881.54 KB) Single_Image_Max42_ab-bk.jpg (0.92 MB) Single_Image_Max54_st-wh.jpg (867.69 KB) Single_Image_Max54_gm-bk.jpg (0.97 MB) Single_Image_Max54_ab-bk.jpg (0.96 MB)
New family member in the NSB Fan club. MAX is undoubtedly masculine and command-ing. The jet-black feature makes MAX the perfect fan for any part of the home or even any fancy restaurants. The five solid blades ensure strong and even winds are generated.
KEY FEATURES
- Three Airfoils in Acrylonitrile Butadiene Styrene (ABS).
- AC Motor
- IR 3 Speed
COLOUR OPTIONS

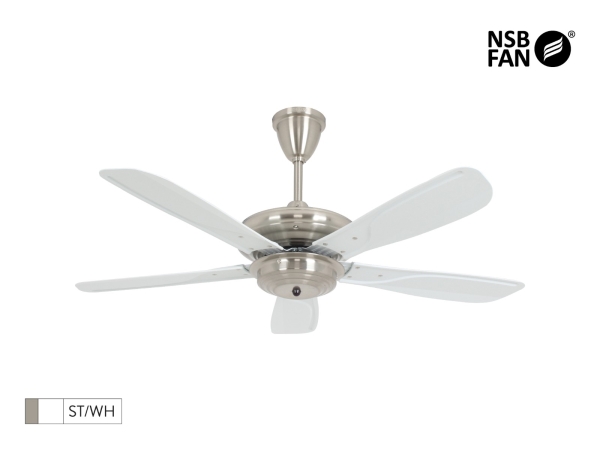

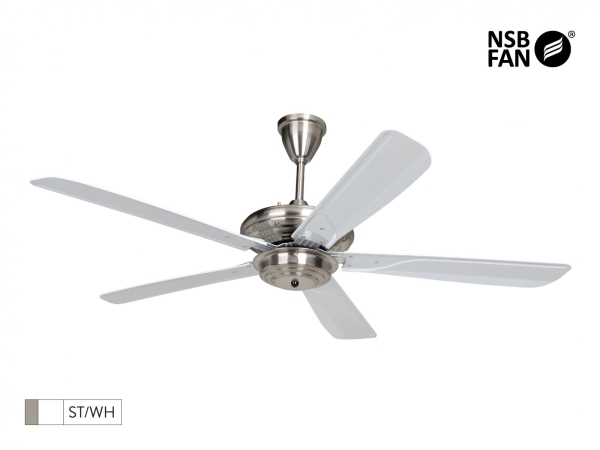

- ST/WH

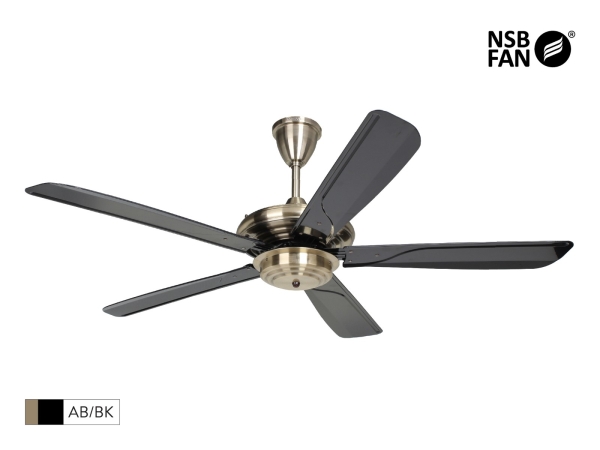

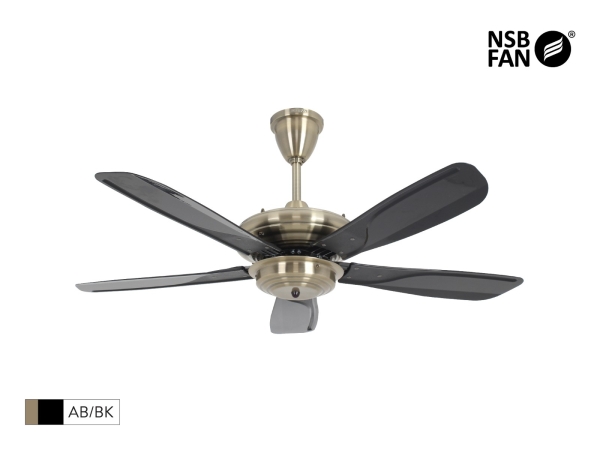

- AB/BK

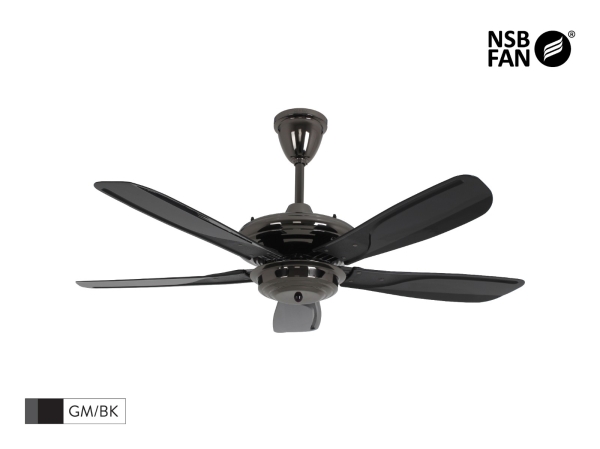

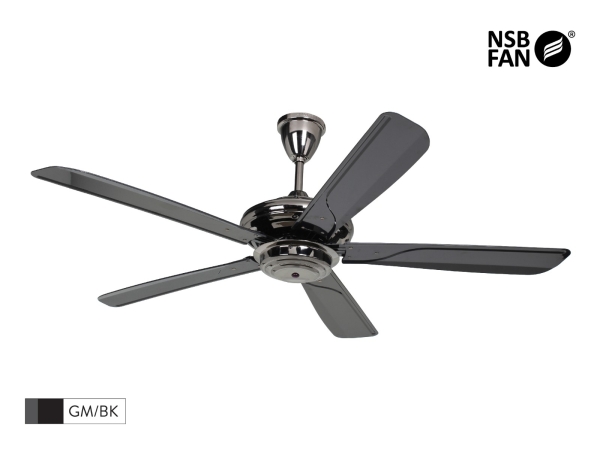

- GM/BK
SPECIFICATION
| Diameter | 42'' / 1067mm | 56'' / 1422mm |
| Height | 16'' / 414mm | 16.92'' / 430mm |
| Motor | AC 153 x 15mm | AC 188mm |
| Number of Airfoil(s) | 5 | 5 |
| Airfoils Material | ABS | ABS |
| RPM/CFM at Max | 255 RPM / 4786 CFM | 230RPM |
| Energy Consumption | 23W Min / 57W Max | 27W Min / 85W Max |
| Light Kit | N/A | N/A |
| Remote Control | IR 3 Speed | IR 3 Speed |
| Voltage | 240V / 50Hz | 240V / 50HZ |
| Mounting System | U Hook | U Hook |
| Net Weight | 6KGS | 5.4KGs |
